- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: Lime500
- Weight: 4500.000 kg
- :
- :
- :
- :
- :
- :
Description

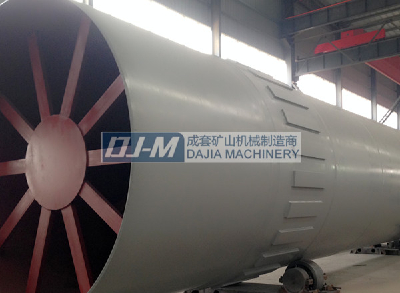

Rotary Kilnis the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. Which belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Structure of rotary kiln
The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc. It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Features of rotary kiln
1. Through technological innovation, our rotary kiln is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.
2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.
3.These new technologies provide our rotary kiln with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency.
4. Comparing with other similar cement production equipment, the operation rate of our rotary kiln increased by 10%, production increased by 5%-10% and heat consumption decreased by 15%.
- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: Lime500
- Weight: 4500.000 kg
- :
- :
- :
- :
- :
- :
Specifications of rotary kiln
Specifications (mm) | dimensions | Output(t/h) | Rotation speed (r/min) | Motor power(kw) | Weight(t) | Note | ||
| Diameter (mm) | Length (mm) | Obliquity (%) | ||||||
| ø1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ---- |
| ø1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ---- |
| ø1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ---- |
| ø1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ---- |
| ø2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ---- |
| ø2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ---- |
| ø2.4*40 | 2.4 | 40 | 3.5 | 6.2-6.8 | 0.39-2.44 | 55 | 136.5 | ---- |
| ø2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ---- |
| ø2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- |
| ø2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- |
| ø2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- |
| ø2.8*44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Suspension preheating kiln |
| ø3.0*45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | ---- |
| ø3.0*48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| ø3.0*60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | ---- |
| ø3.2*50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
