- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: CTB1024
- Weight: 8300.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Brief introduction:

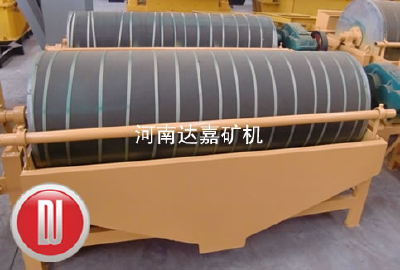

magnetic ore separator is also called iron magnetic separator, magnetic ore separator, dry magnetic separator and wet magnetic separator. It is usually used for sorting fine-grained magnetic minerals, or removing magnetic minerals from non-magnetic minerals. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a deep magnetic field, the machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacities.
Advantages of magnetic separator:
1. Improve material grade, reduce process under load.
2. Be able to sort fine ore and return the inferior for re-turning.
3. Remove impurities, thus improving the quality.
4. Applicable in a wide range of industries.
- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: CTB1024
- Weight: 8300.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
The main technology parameters of magnetic ore separator
| Model | Thestrength of magnetie field（oe） | Capacity （t/h） | Power （kw） | Weight （kg） |
| CTB600×1200 | 1450 | 8-15 | 1.5 | 910 |
| CTB600×1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750×1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900×1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050×2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200×3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500×3000 | 1650 | 120-200 | 11 | 9600 |
