- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: Impact crusher
- Weight: 12500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

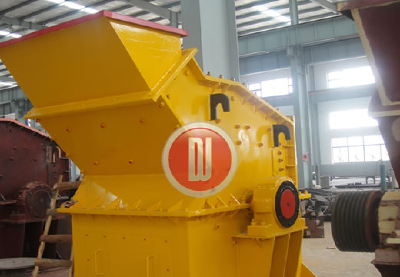

Dajia New High Efficiency Stone Impact Fine Crusher, Granite Impact Crusher
Advantages
It has a unique structure, and is equipped with high-chromium plate hammer and unique impact plate.
Our Impact Crusher can crush hard rocks and has the advantages of higher efficiency, energy conservation, higher reduction ratio, selective crushing and so on.
The crushed materials are in cubic shape and the size of discharging granularity is adjustable.
Features of high effective impact fine crusher
It is a kind of efficient and energy-saving crushing machine.
2,It has the characteristics of simple structure, stable performance, high productivity, low energy consumption, and easy maintenance, etc.
3,The discharging materials are of small and equal size.
4,Its hammer has long service life.
5,By using our efficient highly effective impact fine crusher, tertiary crushing can be changed to secondary crushing.
Applications of high effective impact fine crusher
Energy efficient. Crusher equipment investment is lower than the same scale traditional process equipment 35% -50% ,Production efficiency is higher than the same scale of traditional craft equipment 35% 50%. In a case of limestone, one product size ≤ 5mm more than 85%. Long-running maintenance costs lower than the same size of the traditional technique and equipment 35% -50%, widely used in mechanisms aggregate (limestone, river gravel, pebbles, granite, quartz) highway, railway, water conservancy, airport, construction, cement, refractory, metallurgical industry and so on , as well as building materials, chemicals, coal and other industrial sectors, for coarse, medium and fine crushing medium hardness brittle materials.
- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: Impact crusher
- Weight: 12500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Specifications
Model | Rotor specification(mm) | Inlet size(mm) | Max.feeding size(mm) | Production capacity (t/h) | Motor power(kw) | Weight (kg)(Exculding electric motor) |
PF-0807 | Φ850x700 | 400x730 | 300 | 15-30 | 37 | 6500 |
PF-1008 | Φ1000x800 | 400x830 | 300 | 30-60 | 55 | 10500 |
PF-1010 | Φ1000x1050 | 400x1080 | 350 | 50-90 | 75 | 12500 |
PF-1210 | Φ1250x1050 | 400x1080 | 350 | 70-130 | 110 | 15800 |
PF-1214 | Φ1250x1400 | 400x1430 | 400 | 100-180 | 132 | 19800 |
PF-1315 | Φ1320x1500 | 860x1520 | 500 | 160-250 | 200 | 24000 |
PF-1320 | Φ1320x200 | 860x2030 | 500 | 300-350 | 315 | 29000 |
