- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: XJK2.8
- Weight: 2430.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Brief introduction:

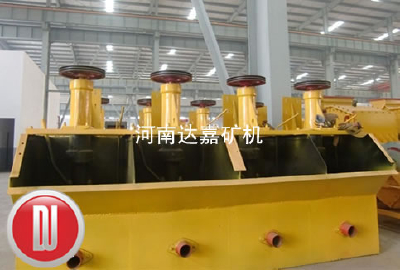

Flotation machine is used for the seperation nonferrous black metal as well as separation non-materiallic materials , such as coal fluorite and talc. The impeller of flotation machine is driven by the transmission spinning of the engine triangle to form centrifugal formation and produce the negative pressure.
It can be used in copper, lead, zinc, nickel molybdenum, and other nonferrous materials, ferrous materials and non-metallic materials .
Features of flotation machine:
1. High inhalation , low power
2. Each chuct can inhale gas, sink magma, there is no need of accesory equipments horizatal equipments, it is easy to chang the flow chart.
3. The cycling way of magma is very reasonble.It can reduce impurities to a great extent.
4. It is automatic equipments on the magma surface, it is easy to adjust.
5. The upward one makes the magma cycle toward upward , which downward one makes the magma cycle toward downward.
- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: XJK2.8
- Weight: 2430.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Specifications of fotation machine
| Type | Cubage(m3) | Diameterof impellor(mm) | Capacity(m3/min) | Speedof impellor(r/min) | Scraper speed(r/min) | Motortype | Power(kw) | Overall dimensions(mm) (four slot in one body) | Weight(t/singletrough) |
| XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | Y90L-4 | 1.5 | 2100*865*900 | 0.35 |
| XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | Y90L-4 | 1.5 | 2625*1130*1290 | 0.41 |
| XJK-0.35 | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | Y100L1-4 | 2.2 | 3012*1350*1320 | 0.45 |
| XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | Y100L2-4 | 3 | 3800*1500*1550 | 0.85 |
| XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | 26 | Y132M-6 | 5.5 | 4680*1820*1950 | 1.4 |
| XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | Y160L-6 | 11 | 7750*2600*2700 | 2.43 |
