- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: 2200x7500
- Weight: 56000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

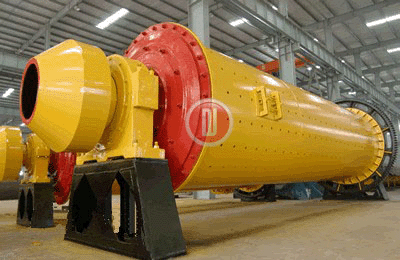

Application of Ball Mill
Ball mill is the key equipment of beneficiation equipment for grinding after the crushing process, which is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control) and widely used in the manufacture industries, such as cement, silicate, refractory material, new building material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Structure of Ball Mill
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
- Place of Origin: Henan, China (Mainland)
- Brand Name: Dajia-Mining
- Model Number: 2200x7500
- Weight: 56000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical Specifications of Ball Mill
Model | Rotatingspeed(r/min) | Ball load(t) | Feeding size(mm) | Output size(mm ) | Capacity(t/h ) | Power(kw ) | Weight(t ) |
ø900*1800 | 36-38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 90 | 21 |
ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 28 |
ø1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 210 | 34 |
ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 42 |
ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 50 |
ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 370 | 52.8 |
ø2200 *7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
ø2200 *7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 56 |
ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
ø2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 400 | 94 |
ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 430 | 102 |
ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | According to technology | 800 | 137 |
